Redirect mapping template for site migrations

Fill in the template, one row per old URL

If your site is changing domain, platform or URL structure, each old URL that earns clicks, links or index entries gets one row in this file before the new templates are built. If you would rather not build it yourself, you can get the map built and tested as an SEO-only package.

The CSV opens with this header and three fictional example.com rows. Delete the examples before the file goes to your developer.

Old URL,Old status,Old title,New URL,Redirect type,Priority,Notes,Checked
https://www.example.com/services/web-design.html,200,Example: Web Design Services,https://www.example.com/services/web-design/,301,High,Example row (fictional): page kept and its address changed,No
https://www.example.com/?p=123,200,Example: Blog Post,https://www.example.com/blog/example-post/,301,Medium,Example row (fictional): query-string address mapped to its new permalink,No
https://www.example.com/old-offer/,200,Example: Retired Offer,,410,Low,Example row (fictional): page retired on purpose; it returns 410 and no redirect,No

The XLSX version holds the same columns and example rows, plus three check columns for every row whose Redirect type is a 3xx. Chain check flags a New URL that is itself an Old URL with a redirect, Loop check flags a row that redirects to itself or to a URL that redirects back to it, and Home page check flags a New URL that is the site’s home page. The formulas fill the first 1,000 rows.

Each column has one job:

Keep the Old URL column absolute, because crawlers need it that way: in Screaming Frog’s list mode, a URL without HTTP or HTTPS “won’t be read and uploaded”⁸. Plugins and server files want the path alone, so the domain comes off at the import step.

Write 301 for every URL that moves: Google’s redirects guide says permanent redirects “Show the new redirect target in search results”, temporary ones “Show the source page in search results”². A 410 marks a page retired on purpose, so an old URL that returns a 404 in the launch crawl is one nobody handled.

Where the old URLs come from, and where each source stops

Old URLs come from four sources: Google Search Console, a backlink report, the current XML sitemap and a crawl of the old site. Google’s site-move guide adds server logs and asks you to “include URLs of embedded content in your site move plans: videos, images, JavaScript, and CSS files”¹. Images get rows, and so do PDFs that other sites link to.

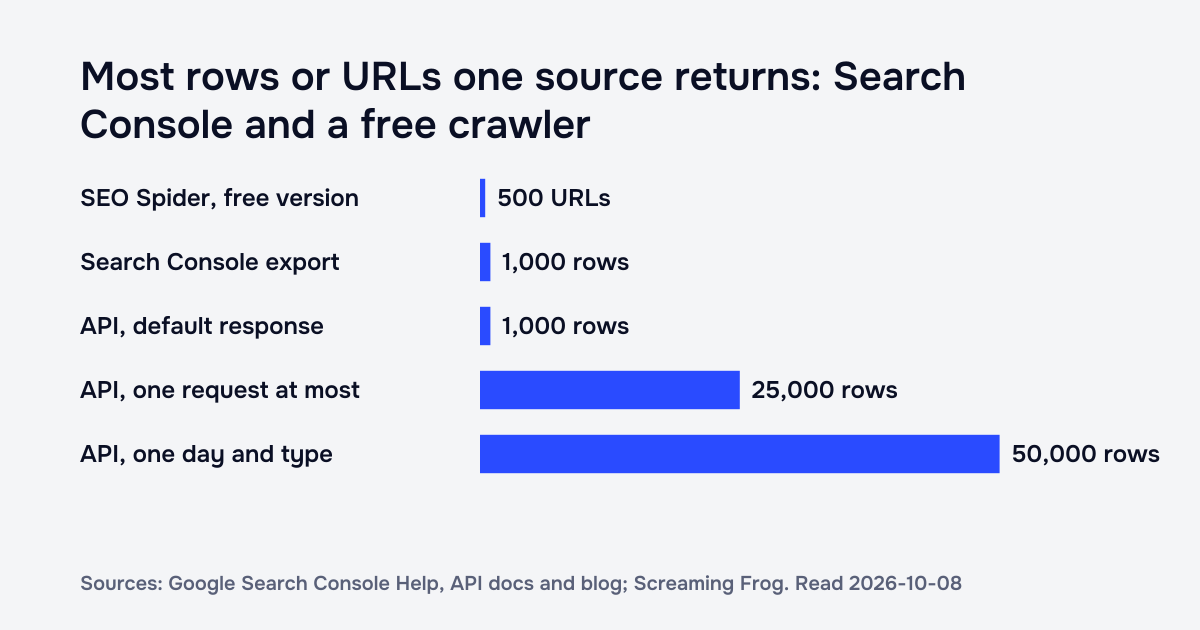

Each source also caps how many URLs it returns at once:

1. A Search Console report export: “Data is truncated to 1,000 rows of representative examples of your data.”⁴
2. The Search Analytics API, one request: its row limit has a “Valid range is 1–25,000; Default is 1,000”⁵.
3. The same API across a day: Google gives the ceiling as “50,000 rows per day per site per search type”⁶.
4. Screaming Frog’s SEO Spider: “The free version is restricted to crawling up to 500 URLs in a single crawl.”⁷

A site with more than 1,000 pages that earned clicks will not fit one export: filter the Performance report by folder and export each part, or use the API with its row limit raised, over the longest date range offered.

Mistakes that break a redirect map

Each mistake below reads fine in the spreadsheet and fails on the live server, which is why the Checked column exists.

Chains cost little to prevent in the map. Google’s crawlers “follow up to 10 redirect hops”³, yet the site-move guide asks you to “keep the number of redirects in the chain low, ideally no more than 3 and fewer than 5”¹. Pointing each old URL, including one that already redirects, straight at its final page keeps every chain at one hop.

Import formats for Redirection, Nginx and Apache

The import file is a conversion of three columns: Old URL, New URL and Redirect type. Below, the template’s three example rows appear in each format.

WordPress with the Redirection plugin

The Redirection plugin imports a CSV whose rows read “source URL,target URL”, optionally followed by “regex,http code,type”⁹. Its matching guide says a path “should always start with a /”, and query parameters are matched exactly by default¹¹. Strip the domain from both columns:

/services/web-design.html,/services/web-design/,0,301
/?p=123,/blog/example-post/,0,301

The 410 row stays out of the file, because “Only redirect HTTP codes are supported (i.e. 301-307).”⁹ Add it in the plugin with the Error (404) action, whose codes include “410 – page gone”¹⁰. To have the whole move done end to end, ask for a WordPress move with this map: the move, the redirects and the launch crawls in one project.

Nginx

Nginx can hold the redirect rows in one map block keyed on $request_uri, the “full original request URI (with arguments)”¹⁴, so the query-string row matches as well. A return line¹³ then sends the 301 or the 410:

# in the http block
map $request_uri $mapped_page {
    /services/web-design.html  https://www.example.com/services/web-design/;
    /?p=123                    https://www.example.com/blog/example-post/;
}

# in the server block
if ($mapped_page) {
    return 301 "$mapped_page";
}
location = /old-offer/ {
    return 410;
}

Two details differ from Apache’s Redirect lines: nginx compares map strings “ignoring the case”¹², and since each key holds the whole query string, a tagged link such as /services/web-design.html?utm_source=news misses an exact row that Apache would still redirect.

Apache

Apache’s mod_alias¹⁵ handles plain paths with Redirect, and its gone status returns a 410. A URL with a query string needs mod_rewrite, whose docs say “If you wish to match against the hostname, port, or query string, use a RewriteCond” with the matching variable¹⁶. In a WordPress .htaccess file, the lines go above # BEGIN WordPress, outside the basic WordPress block that runs from there to # END WordPress¹⁷:

Redirect 301 /services/web-design.html https://www.example.com/services/web-design/
RewriteEngine On
RewriteCond %{QUERY_STRING} =p=123
RewriteRule ^$ https://www.example.com/blog/example-post/? [R=301,L]
Redirect gone /old-offer/

The closing question mark drops the old query string, as the mod_rewrite docs explain: “When you want to erase an existing query string, end the substitution string with just a question mark.”¹⁶ A Redirect line matches a “case-sensitive (%-decoded) path”¹⁵ from its start, so /Services/web-design.html and /old-offer without its slash pass these lines untouched and reach WordPress. Add a row for each form Search Console lists.

Check the map with a crawler in list mode

A list-mode crawl of the Old URL column shows whether each row does what the map says, even when you are told the redirects are handled. Screaming Frog’s SEO Spider is one crawler with a list mode; its guide gives the settings below⁸:

1. Before launch, switch to Mode > List, upload the Old URL column and crawl the old site. Copy each response code into Old status.
2. Turn on Always Follow Redirects under Config > Spider > Advanced, so that redirects are “followed until they reach a non-3XX response”⁸.
3. On staging, swap the domain in the upload for the staging host, add each path’s other form with or without its trailing slash, and crawl again.
4. On launch day, crawl the same upload against the live domain and export the All Redirects report, which “will map out the full chain of redirects in a single report”⁸.
5. Mark a row Yes in Checked when its old URL returns its Redirect type and reaches New URL in one hop. Send every other row to your developer, and repeat the crawl a week and a month after launch.

If every row passes and clicks still fall after launch, the cause is likely outside the redirects, and a diagnosis of the drop is the next step.

When to have the map built and tested

If organic search brings your business inquiries or sales, have the map built for you when any of these is true:

• The site has more pages with clicks than one Search Console export holds.
• The old platform puts fixed segments in its URLs, so rows have to become pattern rules.
• Nobody on your side can edit the server configuration or the redirect plugin on launch day.
• The launch date is set and nobody has crawled the old site yet.
